4 640 руб./шт
Для организаций с НДС:
5 568
руб.
Нашли дешевле?
В корзину
Купить в 1 клик
РАССЧИТАТЬ ДОСТАВКУ
Хочу в подарок
Характеристики
Номинальный ток, А
—
1
Номинальный непрерывный ток, А
—
1
Все характеристики
Оплата
Безналичная оплата (юр. лицам)
Оплата наличными (физ. лицам)
Переводом (физ. лицам)
Описание
Технические характеристики согласно ETIM 6.0

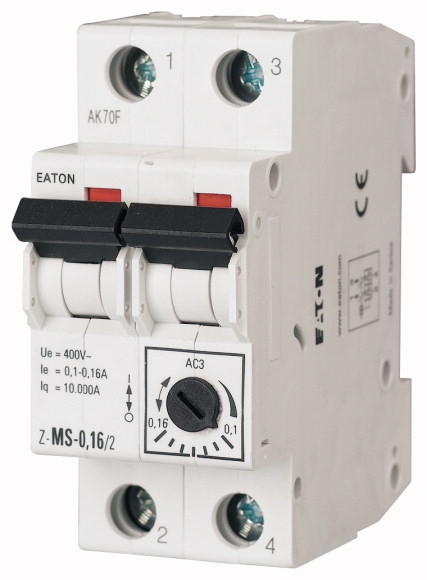

Low-voltage industrial components (EG000017) / Motor protection circuit-breaker (EC000074) | |||
Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Motor protection circuit-breaker (ecl@ss8.1-27-37-04-01 [AGZ529013]) | |||
Overload release current setting | A | 0.63 - 1 | |
Adjustment range undelayed short-circuit release | A | 10 - 13 | |
Thermal protection | Yes | ||
Phase failure sensitive | No | ||
Switch off technique | Magnetic | ||
Rated operating voltage | V | 400 - 400 | |
Rated permanent current Iu | A | 1 | |
Rated operation power at AC-3, 230 V | kW | 0 | |
Rated operation power at AC-3, 400 V | kW | 0.25 | |
Type of electrical connection of main circuit | Screw connection | ||
Type of control element | Rocker lever | ||
Device construction | Complete device in housing | ||
With integrated auxiliary switch | No | ||
With integrated under voltage release | No | ||
Number of poles | 2 | ||
Rated short-circuit breaking capacity lcu at 400 V, AC | kA | 0 | |
Degree of protection (IP) | IP20 | ||
Height | mm | 75 | |
Width | mm | 36 | |
Depth | mm | 80 |
Данный товар вы всегда сможете купить по низкой цене с доставкой у нас в магазине МВБ по номеру телефона 8 495 185-05-44 или написав на почту zakaz@security-master.ru
Характеристики
Номинальный ток, А
1
Номинальный непрерывный ток, А
1
|
