Описание
Программа поставок

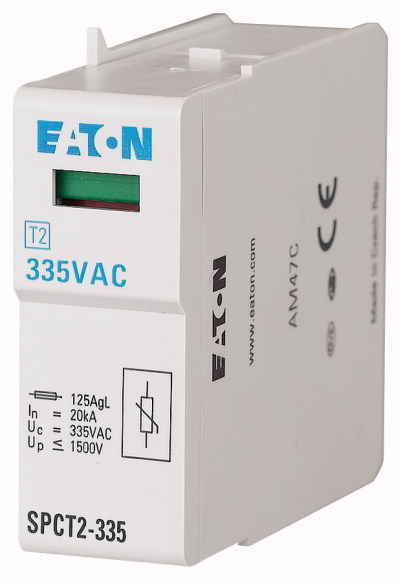

Продукты | Устройство защиты от скачков напряжения (сетевой фильтр) | ||
Область применения | Жилые здания Коммерческие здания Открытое пространство |
Технические характеристики согласно ETIM 6.0
Earthing, lightning and surge protection (EG000021) / Surge protection device for power supply systems (EC000941) | |||
Electric engineering, automation, process control engineering / Protection installation, device (electric) / Surge protection device (inner lightning protection) / Surge protection device for power supply systems (ecl@ss8.1-27-13-08-05 [ACN278008]) | |||
System configuration | - | ||
Type of poles | 1 | ||
Nominal discharge surge current (8/20) | kA | 20 | |
Nominal voltage AC | V | 580 | |
Nominal voltage DC | V | 0 | |
Max. continuous voltage AC | V | 580 | |
Max. continuous voltage DC | V | 0 | |
Max. PV-voltage | V | 0 | |
Voltage protection level | kV | 2.6 | |
Voltage protection level L-N | kV | 0 | |
Voltage protection level N-PE | kV | 0 | |
Short-circuit-proof | No | ||
Mounting method | On basic element | ||
Construction size | 1 modular spacing | ||
Max. conductor cross section solid (solid, stranded) | mm? | 25 | |
Max. conductor cross section flexible (fine-strand) | mm? | 0 | |
With remote signalling contact | No | ||
Integrated backup fuse | No | ||
Signalling at the device | Optic | ||
Category type 2 | Yes | ||
Degree of protection (IP) | IP20 |
Данный товар вы всегда сможете купить по низкой цене с доставкой у нас в магазине МВБ по номеру телефона 8 495 185-05-44 или написав на почту zakaz@security-master.ru
