Описание
Технические характеристики согласно ETIM 6.0

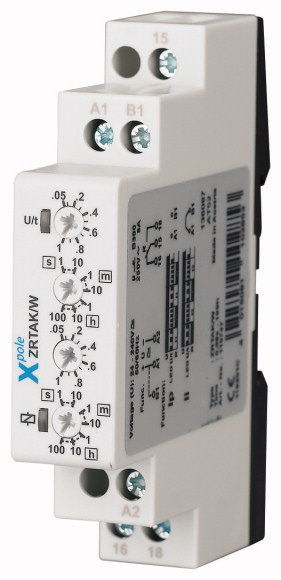

| Relays (EG000019) / Timer relay (EC001439) | ||
| Electric engineering, automation, process control engineering / Low-voltage switch technology / Relay and socket / Timed relay (ecl@ss8.1-27-37-16-05 [AKF092010]) | ||
Type of electric connection | Screw connection | |
Function delay-on energization | No | |
Function delay on de-energization | No | |
Function floating contact on energization | No | |
Function floating contact on de-energization | No | |
Function star-delta | No | |
Function pulse shaping | No | |
Function flashing, starting with pause, fixed time | No | |
Function flashing, starting with pulse, fixed time | No | |
Clock function, starting with pause, variable | Yes | |
Clock function, starting with pulse, variable | Yes | |
With plug-in socket | No | |
Remote operation possible | No | |
Suitable only for remote control | No | |
Pluggable on auxiliary contact block | No | |
Rated control supply voltage Us at AC 50HZ | V | 24 - 240 |
Rated control supply voltage Us at AC 60HZ | V | 24 - 240 |
Rated control supply voltage Us at DC | V | 24 - 240 |
Voltage type for actuating | AC/DC | |
Time range | s | 0.05 - 360000 |
Number of outputs, undelayed, normally closed contact | 0 | |
Number of outputs, undelayed, normally open contact | 0 | |
Number of outputs, undelayed, change-over contact | 0 | |
Number of outputs, delayed, normally closed contact | 0 | |
Number of outputs, delayed, normally open contact | 0 | |
Number of outputs, delayed, change-over contact | 1 | |
Outputs, reversible delayed/undelayed | No | |
With semiconductor output | No | |
Width | mm | 17.5 |
Height | mm | 87 |
Depth | mm | 65 |
